SIERA - Linear Source System for Medium Throw Applications SIERA is a linear source system designed for medium throw applications, offering high-fidelity sound reproduction and high SPL with minimal visual impact. It is ideal for professional sound reinforcement as well as high-end residential installations.
SIERA Top - Colinear Source Technology The SIERA Top enclosure features six 5" mid-frequency (MF) drivers and two 1.75" high-frequency (HF) compression drivers, mounted on two angled waveguides. This advanced transducer arrangement, known as Colinear Source technology ensuring ultra-wide horizontal coverage and extended throw capability.
SIERA Sub - Powerful Low-Frequency Extension The SIERA Sub enclosure is equipped with two high-performance 15" drivers, providing enhanced low-frequency response and extended bandwidth, perfectly complementing the SIERA system.
Construction & Design The15mm plywood enclosure is coated a durable black polyurea finish (2 layers), ensuring protection and longevity. The coated front grille is backed with anacoustically transparent, water-repellent fabric, offering weather resistance without compromising sound quality.
Combining exceptional acoustic performance with a slim design, the SIERA system seamlessly integrates into a variety of environments.

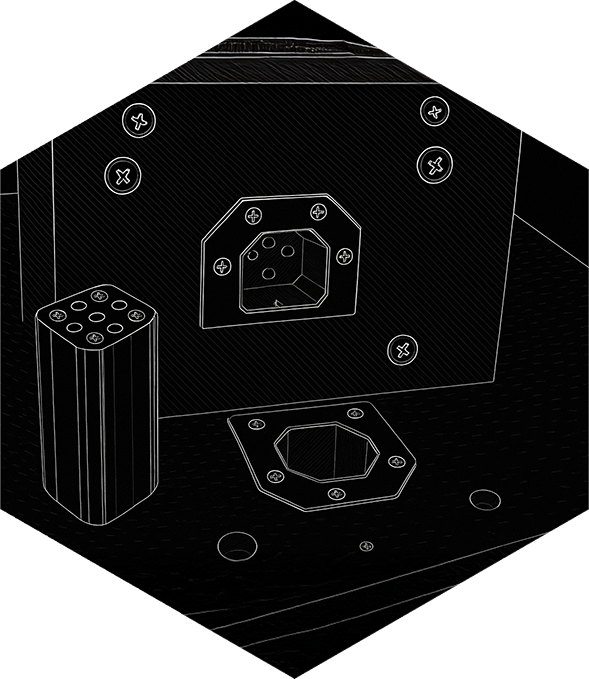

Versatile Deployment Options Thanks to its fast and easy deployment, SIERA is ideal for fixed installations and mobile applications. The system can be used in a standalone stacked configuration or installed via wall-mounting and flying options. The system could be connected using the included SC1 connector or speaker cable.
- Article Nr. 17101
- Loudspeaker Type Top Two-way, compact line array
- Loudspeaker Type Sub Self-powered, Double 15", bass-reflex, subwoofer
- Frequency Range Top (-10 dB) 87 Hz - 20 kHz
- Frequency Range Sub (-10 dB) 35 Hz - 200 Hz
- Maximum SPL (Calculated at 1m) Top 137 dB
- Maximum SPL (Calculated at 1m) Sub 134 dB
- Coverage Pattern Top H 120° x V 20° nominal
- Coverage Pattern Sub Omni
- Power Handling Top 500 W continuous, 2000 W peak
- Power Handling Sub 1000 W continuous, 4000 W peak
- HF / LF Driver Top 2x 1,75" Neodym HF compression driver / 6x 5" woofer
- LF Driver Sub 2x 15", 3" voice coil speaker
- Protection Limiter
- Active Tuning / Features 4 DSP presets, Line/Mic IN & switch, Top and Sub Level, Mix OUT, Bluetooth
- Enclosure 15 mm birch plywood
- Finish Black polyurea coating
- Fittings 2x Handles, 2x connection pole socket SC1, 75mm wheels optional
- Protective Grille Black perforated coated steel with acoustic transparent fabric backing
- Connectors Top 1x NL4, Pins 1+/1-, Connector SC1
- Connectors Sub 2 x XLR/6.35 Jack Combo, 1x XLR, RCA In, PowerCon In/Out
- Dimensions mm (WxHxD) Top 180 x 1118 x 200
- Dimensions mm (WxHxD) Sub 445 x 950 x 600
- Weight Top 19 kg
- Weight Sub 46.5 kg
Installation
Portable sound reinforcement
Live Music
Bars and restaurants
Nightclubs
- Art. Nr. 12564
WB 2 Wall Bracket - 2 Axis wall bracket for SIERA Top wall mount
- Art. Nr. 12520
4x Wheels Set. / 2x with Brake 2x without Brake for SIERA Sub (75mm)
- Art. Nr. 12643
SIERA Cover Set
Cover for SIERA Sub (wheels needed Art. Nr. 12520) & Bag for SIERA Top
